Stack the Deck…

/in /by

With Bridge Forming Products from SureBuilt!

Bridge Overhang Bracketssurebuilt bridge overhang bracket

The Bridge Overhang Bracket adjusts to fit both structural steel and precast concrete beams. The size and shape of the bracket is adjusted by changing the vertical and diagonal legs to meet the specific overhang forming requirements.

A Bracket Extension for wider overhangs, Guard Rail Receptacle for 2×4 uprights, and Wall Plate for wall mounting, are options adding to bracket versatility.

Exterior Hangers

surebuilt-bridge-forming-accessories

Exterior Hangers generally use two types of end clips, a 45-degree end to support the overhang and a 90-degree end to support the interior. Hangers must always support the live load, dead load, forming load and/or finishing load.

There are several types of Exterior Hangers, including the Type 1-A, 2-A, 3-A, 4-A, 7-A, 8-A and 9-A, plus all the Half Hanger versions.

Interior Hangers

Interior Hangers are placed on top of the interior beams. Two 90-degree end clips support the surebuilt bridge deck hangerssuspended formwork between the beams. Hangers must always support the live load, dead load, forming load and/or finishing load.

There are several types of Interior Hangers, including the Type 1, 2, 3, 4, 5, 7, 8 and 9, plus all the Half Hanger versions.

Download the Bridge Forming brochure to learn more.



Proudly manufactured in Bellwood, IL.

From the Ground Floor Up!

/in /by

New SureBuilt dowel products

SureBuilt is penetrating a new sector of the concrete construction industry with the introduction of engineered joint stability systems for concrete floors. New dowel products from SureBuilt include the diamond-shaped Taper Dowel, Dowel Basket, and Steel Edge Nosing. High-traffic concrete floors and pavements require precise load transfer, smooth transition and joint protection. These requirements can be satisfied with these new joint stability systems.

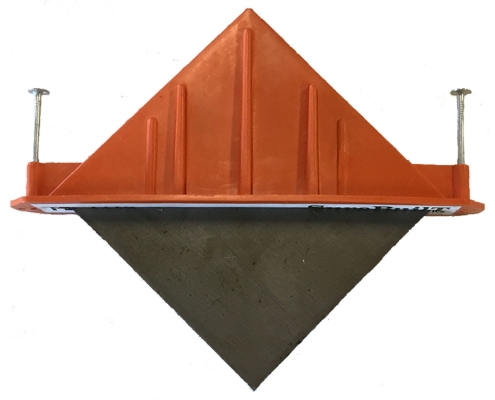

The Taper Dowel is a diamond-shaped, engineered load transfer system for horizontal movement in concrete floor joints. The Dowel Basket is a wire and plate dowel assembly for efficient load transfer in concrete floor and pavement contraction joints. The Steel Edge Nosing is a free movement joint with a heavy duty steel edge to protect contraction joints in high traffic floors.

In industrial and commercial buildings, a critical design component is the long-term serviceability of a concrete floor slab. The rapid change in the logistics industry from larger, cushioned wheels to smaller, harder wheels on lift-trucks has greatly increased the problem of joint spalling in warehouse, retail, and manufacturing facilities. Spalled joints or cracks can significantly disrupt productivity, require expensive repair, and make facilities less desirable to potential new owners or tenants. A design that delivers proper joint stability and support is key to minimizing spalling and cracking in a concrete floor that is subject to wheeled traffic. Industry guidelines all recommend the use of load-transfer devices, such as dowels, in concrete floors with lift-truck traffic.



Big Gangs… Big Walers!

/in /by

Just Build the Size You Need!

The end plates on each Butt Plate Waler have holes for full-moment, end-to-end connection. It’s easy to build the Waler you need.

Butt Plate Walers are available in 2′, 4′, 6′, 8′, 10′ and 12′ lengths. The possible Waler size combinations are enough for almost any gang.

Contractors put together lots of gangs, but they don’t always have the Waler size they need… the one thing that maximizes their productivity!

Click here for more on Walers, contact your SureBuilt representative for pricing and availability, and start building the Walers you need.

Your Forms… Your Color!

/in /by

Just About Any Color!

Contractors often have their trucks and other vehicles marked with a logo and painted in the company color.

So why wouldn’t they want their forming and shoring equipment to match?!

The powder-coated equipment  becomes part of the contractor’s “fleet” and visible on every project in town.

SureBuilt is powder-coating products in different colors all the time. We have the bare frames for your next order in stock right now.

Download the Color Options data sheet and show your customers how to set themselves apart!

Join the Gang…

/in /by

With Heavy Form Ties!

Your customers are using all kinds of gangform systems… make sure they know you can supply all kinds of Heavy Ties!

You can make sure they get the best possible gangform productivity with the right tie… just contact SureBuilt for the types, sizes and capacities your customers need.

Check the Price List for all the available options, then let us know how we can help.

Not Spandex… SPAN-X!

/in /by

Telescoping Aluminum SPAN-X Beams!

The SPAN-X Beam consists of an aluminum box shape with a telescoping I-beam that provides a sliding range of adjustment. A single Nut sets the length and camber. The End Tabs support the beam during construction.

This self-spanning support can be positioned along the top of a concrete wall, shelf angle or stringer. The clear span provides a more accessible work space underneath, reducing conflict between trades. SPAN-X Beams have been used for box culverts, shaft core roofs, water channels and other similar concrete deck support.

SPAN-X Beams are available in four standard sizes, with an overall adjustment range from 3′-4″ to 19′-0″ in length.

Check the Price List for sizes and capacities, then contact your SureBuilt representative for pricing and availability.

Bolster More Customer Support!

/in /by

Keep Rebar Off the Deck!

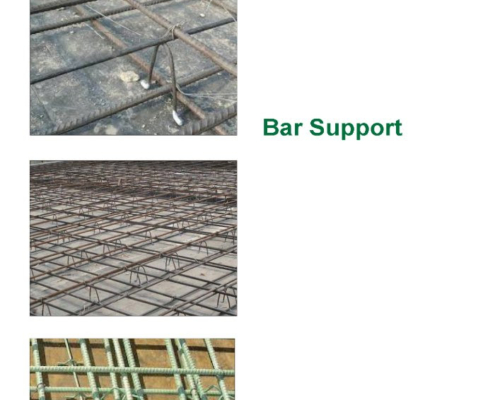

Slab Bolster is used to support rebar and mesh at the proper elevation in concrete slabs. The legs are spaced 5” on-center and spot-welded to resist bending.

When a runner wire is spot-welded to the feet along the full length it becomes Slab Bolster Upper. This provides support on soft surfaces or upper level rebar.

Standard heights from 3/4” to 4”, in 1/4” increments, with other fractional sizes available on request. Options include plastic-dipped or plastic-tipped feet, and/or an epoxy-coated or galvanized finish.

Continuous High Chair is also used to support rebar and mesh at the proper elevation in concrete slabs. The legs are spaced 7-3/4” on-center and spot-welded to resist bending.

When a runner wire is spot-welded to the feet along the full length it becomes Continuous High Chair Upper. This provides support on soft surfaces or upper rebar levels.

Standard heights from 4” to 10”, in 1/2” increments, with other fractional sizes available on request. Options include plastic-dipped or plastic-tipped feet, and/or an epoxy-coated or galvanized finish.

Beam Bolster is used to support rebar at the proper elevation in beam form soffits. Legs are spaced 2-1/2” on-center and spot-welded to resist bending.

When a runner wire is spot-welded to the feet along the full length it becomes Beam Bolster Upper. This provides support on upper rebar levels.

Standard heights from 3/4” to 4”, in 1/4” increments, with other fractional sizes available on request. Options include plastic-dipped or plastic-tipped feet, and/or an epoxy-coated or galvanized finish.

Contact your SureBuilt representative to learn more about all the Bar Support products.

Oh Well, That’s Just Grate…

/in , /by

Need a Way Out?!

Do the building codes in your area require residential basements to have an escape window? If the answer is yes, then you should be supplying the contractors in your area with SureBuilt window wells and accessories.

Window Wells allow air, sunlight and access to a basement or below-grade space by acting as a barrier to the surrounding backfill. Each corrugated well is made using 18-gauge galvanized steel for durability and corrosion resistance. The top and bottom edges are formed and rolled over to eliminate sharp edges and support a person standing on a ladder or grate.

HD Egress Ladders are designed for emergency situations. The ladder can be used to escape from the basement or as an access option for emergency personnel. The hooked ends of the ladder hang over the rim, supporting the ladder inside the well. IRC code requires ladders in wells deeper than 44”. The HD Egress Ladders are available in 4’, 5’ and 6’ heights.

Grates keep people and objects from falling into the well. The grate is made of rolled angle iron steel, and welded steel safety bars. Premium mesh grates are also available to keep leaves and other debris out of the well.

Bucks are positioned and braced in the forms before the concrete is poured. Each buck has four built-in form tie slots. A basement window is installed in the opening created by the window buck.

Pipe Dream?

/in /by

Or Pipe Reality!

Are you tired of listening to other suppliers “explain” why it takes so long to get pipe braces delivered? Do you find it hard to believe that other suppliers can be ten or more weeks out on deliveries?

Stop waiting! We build more sizes, ship more often, and supply more jobs, than just about anyone else.

That should be your new reality! Call for the Pipe Braces you need.

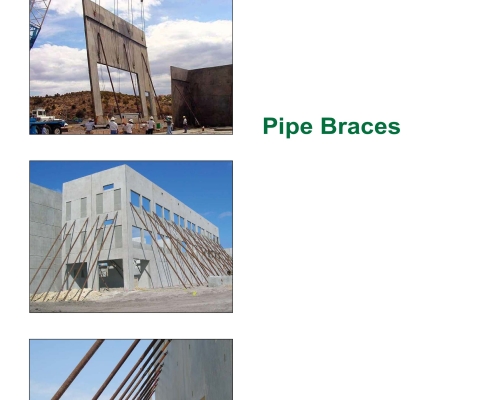

Adjustable Pipe Braces have a telescoping pipe for rough dimension and a 6” threaded connecting shoe for final adjustment and anchoring. There are three sizes of Adjustable Pipe Brace, ranging from 7’-6” to 40’-0”.

Fixed Pipe Braces are a standard length with an 18” threaded connecting shoe for final adjustment and anchoring. There are four sizes of Fixed Pipe Brace, including extensions, ranging from 16’-6” to 32’-9”.

Heavy-Duty Fixed Pipe Braces are a larger diameter pipe that provides greater capacity. There are three sizes of HD Fixed Pipe Brace, ranging from 31’-0” to 52’-6”, plus an optional 10′ extension for a 62′ length.

Join the Panel Discussion!

/in /by

Be a Concrete Form Panel Expert!

A handset panel is the most economical, the most versatile, and the most efficient way of forming large or small projects!

Here are just a few of the more noteworthy features you should be sharing with your customers:

Rated 1000 PSF System
With nearly 20% more weld contact, SurePly side rails, end rails and crossmembers hold up better and need far less repair, than other brands.

Full 2” Crossmember
A full 2” crossmember provides 45% more plywood contact area compared to the 1-3/8” crossmember of other brands. More support reduces “pillowing” for a better finish.

Additional Dado Slots
Four more dado slots along each side rail provides alternate tie and hardware locations – particularly valuable when stacking or “stepping” forms.

Paint Options
Forms are available in 12 standard baked-on colors, which is ideal for company branding and/or identifying rental fleets. Custom colors on request.

Baked-On Powder Coat
The smooth, extra tough baked-on SurePly form finish provides easier cleaning and more long-term protection than dip-tank painting, common with other brands.

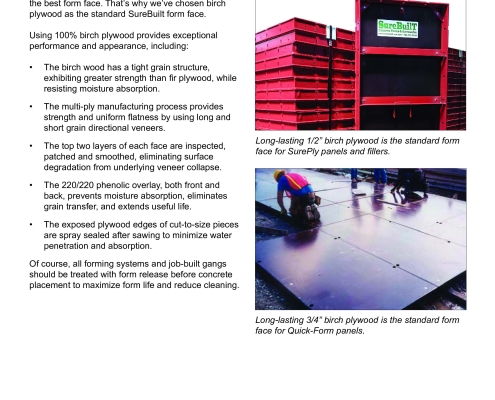

Long-Lasting Birch Plywood
All SurePly panels and fillers include 1/2″ Birch plywood. This hardwood species, 9-ply design and 220/220 overlay provides a sturdier and longer-lasting form face.

More Productivity
Two 2×8 panels are the equivalent contact area of a 4×8 sheet of plywood, yet they can be moved, placed, tied, poured and stripped 75% faster than job-built forms.

Form Renovation Service
Renovation options include plywood removal, shot-blasting and painting. These “like-new” frames are then refaced to customer specification.

What unique panel features did we miss? Send us a message with a feature that hasn’t already been mentioned and we’ll be sure to send you some SureBuilt swag!
