Better Edge Lifts and Rotation

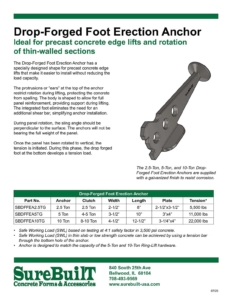

The 2.5-Ton, 5-Ton, and 10-Ton Drop-Forged Foot Erection Anchors are supplied with a galvanized finish.
The anchor has a specially designed shape for precast concrete edge lifts that make it easier to install without reducing the load capacity.
The protrusions or “ears” on the anchor restrict rotation during lifting, protecting the concrete from spalling. The integrated foot eliminates the need for an additional shear bar, simplifying anchor installation.
During panel rotation, the sling angle should be perpendicular to the surface. The anchors will not be bearing the full weight of the panel.
Once the panel has been rotated to vertical, the tension is initiated. During this phase, the drop-forged foot at the bottom develops a tension load.
Click here for more Anchor information or the Precast catalog, then contact your SureBuilt representative for pricing and availability.
