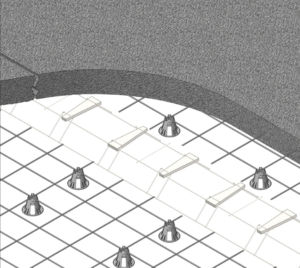

The Dowel Basket provides preplanned joint stability, load transfer and smooth transition, in a single costeffective assembly.
A properly installed Dowel Basket minimizes joint spalling, eliminates tripping hazards and improves joint filler appearance.
The Dowel Basket is recommended for joints up to 0.20” wide and is suitable for all types of ground level concrete floors, slabs or pavements.
The size and shape of the Taper Dowel provides joint stability, load transfer and smooth transition, without restraining concrete floor movement.
The plastic sleeve fastens quickly to edge forms before concrete placement and the steel plate slides into the sleeve opening in preparation for the adjoining slab.
A properly installed Taper Dowel is recommended for joints up to 0.20” wide and is suitable for all types of ground level concrete slabs, such as jointed floors, flatwork and pavement.
Steel Edge Nosing
High-traffic concrete floors and pavements require precise load transfer, smooth transition and joint protection. All of these requirements can be satisfied with the Steel Edge Nosing assembly.
The full-depth 10’-6” assembly includes steel nosing, dowel plates and channel for a complete joint installation. The leave-in-place design eliminates conventional slab edge forming costs.
The steel nosing, with studs tied to the concrete slab reinforcement, provides joint edge protection and a smooth transition from one concrete section to another.
