Bolt Panels to the Foundation

Eliminate Embed Plate and Field Welding

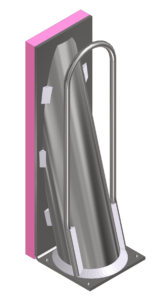

The Panel Base Connector for precast applications is easy to position and fasten at the bottom edge of the form. It can be placed in either a face-up or face-down orientation depending on the forming and handling preference.

The high-strength, purpose designed drill-in 3/4”x10” screw anchor provides an immediate and secure connection when tightened. There is no grout set-up or wait time.

The connection is centered in the concrete panel, minimizing moment and eccentric forces in the design, and resisting in-plane tension and out-of-plane shear forces.

The connection provides a nominal capacity in excess of 10 Kips, meeting the appicable ACI requirements.

The relatively small access area is easy to grout, providing complete embedment and encapsulation for corrosion protection.

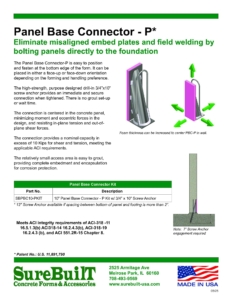

Click here for more information about the Panel Base Connector for precast applications, then contact your SureBuilt representative for pricing and availability.

American products, made by American metalworkers, for American contractors.
